Product Description

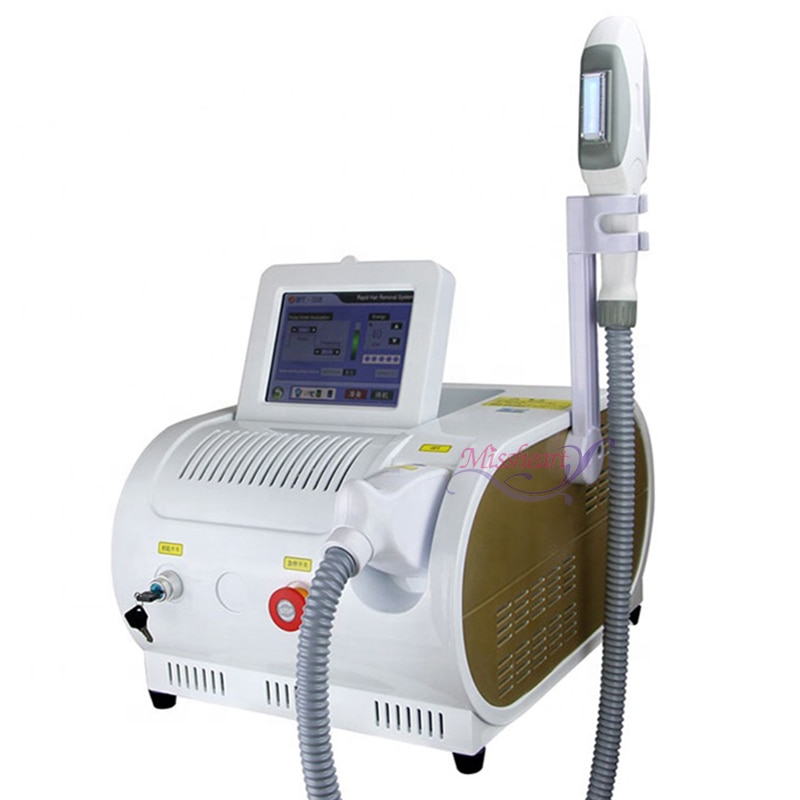

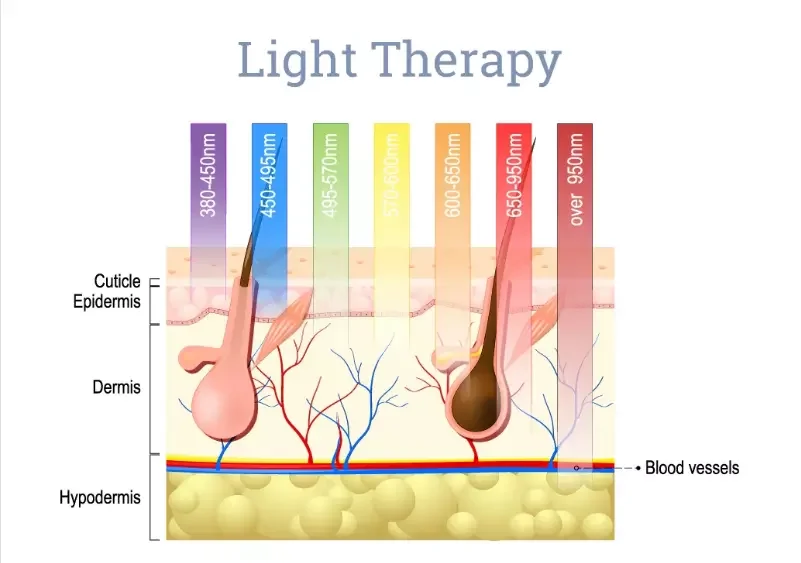

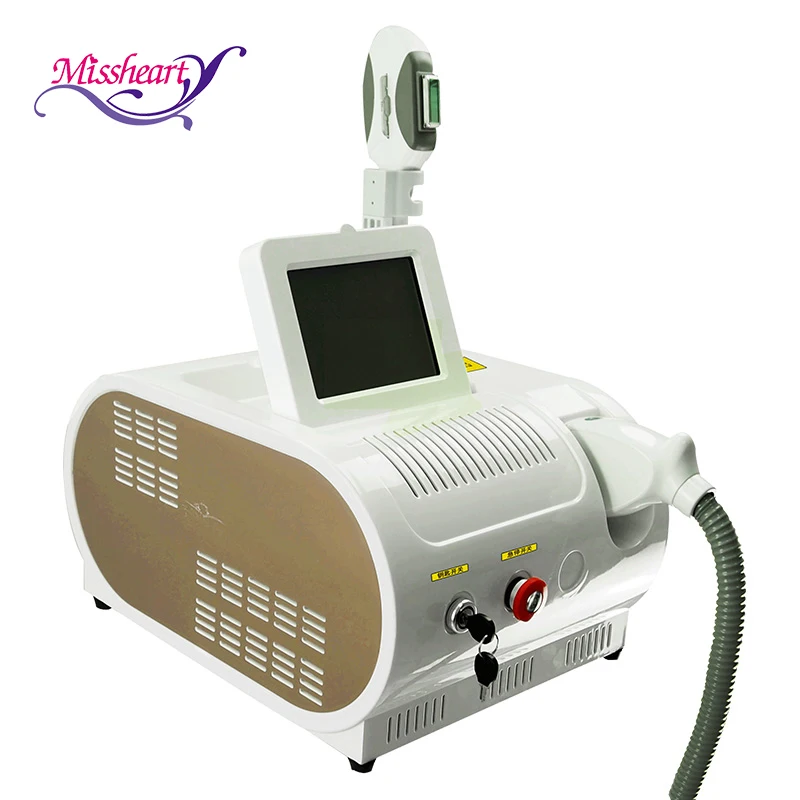

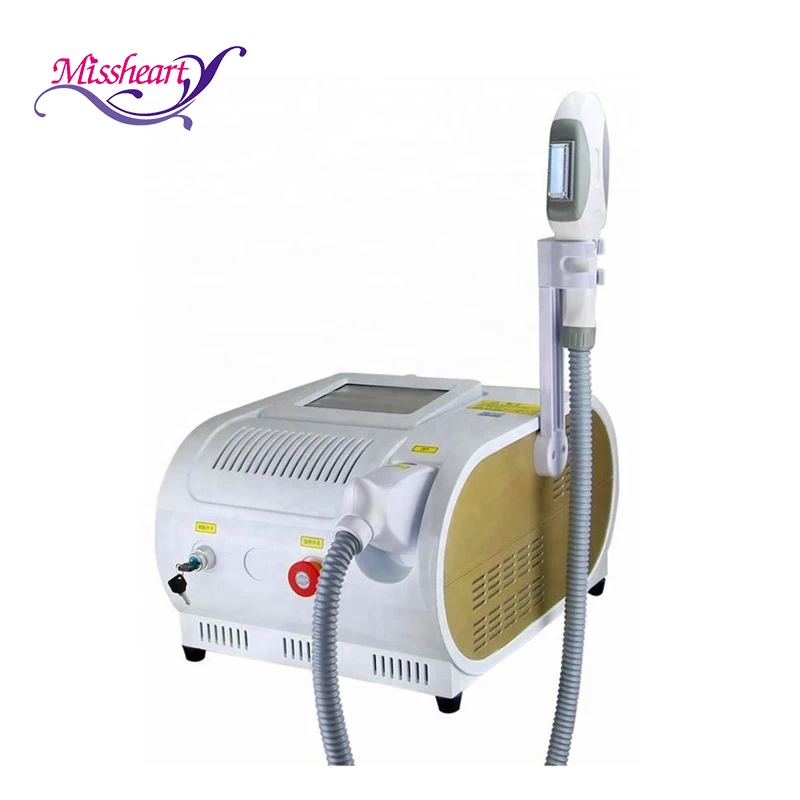

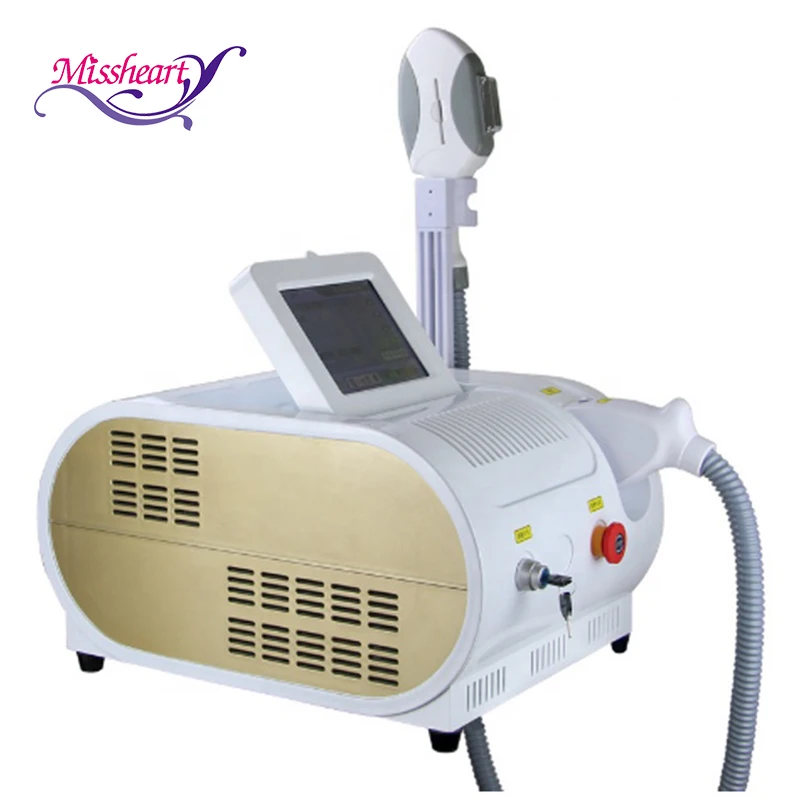

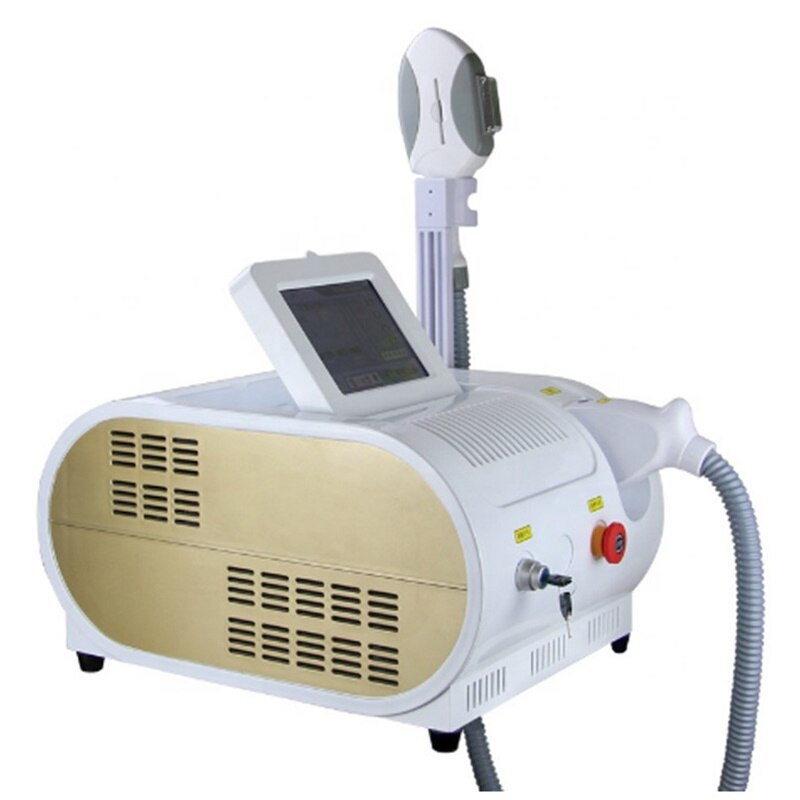

Product Description OPT is with new AFT technology (Advanced Fluorescence Technology) uses
low and equal energy. The special filter cut s 950-1200nm wavelength, which is
useless in treatment and absorbs water to make patient feel painless.
"In Motion" represents a breakthrough in permanent hair removal with light
technology. The treatment is more pleasant than with the conventional systems and
your skin is better protected.
How to use the OPT ?
Clinic operation
A. Before treatment
To the machine:
b). Input enough water and make good water circulation before actual operation
c). Water source: distilled water or pure water
d). Before the operation, make sure probe cold. Then it's able to start the operation. (if
take operation under the state of no water circulation or hot probe, the handpiece is
easy to damaged.)
e). Inflammable and explosive things should be kept away from operating room, such
as stupefacient ,liquid and gas.
To the patients:
a). Classification of skin: it's safe and effective to the white, brown or yellow skin.
b). Clean skin to eliminate the perfume and cosmetics.
c). Use digital camera for memory, take photo from different orientations, if necessary
d). If necessary, use external anesthetic one hour before the treatment; Please shave
hair firstly under hair removal treatment.
f). Spread the cooling gel on skin, about 2 mm thickness
g). Wear eyepatch before actual option
Note: can not look at the intensive pulsed light directly, or alarm to people's eyes, such
as keratitis, cornea brushing off, or even lose sight.
h). forbidden to wear watch and necklace etc. during the treatment.
To the operators:
a). Adjust the right parameters
b). Touch the on the LCD to start
c). Test the device working, please shot the 3 first pulse to ground at beginning,
make sure even energy output in treatment.
d). Wear glasses before actual option
e). forbidden to wear watch and necklace etc. during the treatment.
f). can not look at the intensive pulsed light directly, or alarm to people's eyes, such as
keratitis,cornea brushing off, or even lose sight.
g). Please do not optionally open the panel of the machine even power stopped, in
case high voltage danger.
h). It must tighten up the screw caps of machine before movement.
i). vertically slide the probe on skin, and keep close to skin
J). Keep the machine rest every 2 to 3 hours continuously working
k). The handle is fragile, please keep special care when hanging to the holder or in
handle
l). Please do treatment from the lower energy at the beginning, and adjust the energy
according to actual conditions.
System alarm of water temperature:
The lowest system settings of water temperature is 25 degree the highest system
setting of water temperature is 60 degree. During 25---60 degree, the machine
works well. If lower 25 degree or higher 60C,now pulse output from the probe.
Taboos(who are not suitable to use this machine?)
a) Pregnant
b) Isolation in the sun
c) Sensitive to light or medicine, or are taking medicine that sensitive to light
d) Using vitamin within 6 months
e) Not representative naevi or malignant pathological changes in the treatment area.
f) Pacemaker or quiver dispelling device user
g) Herpes or trauma
h) Pimple record
i) People who accept Hirudin etc. treatment (should stop using it before 2 weeks).
j) Severe diabetes patient, high blood pressure sufferer, and epileptic
Technical Parameter:

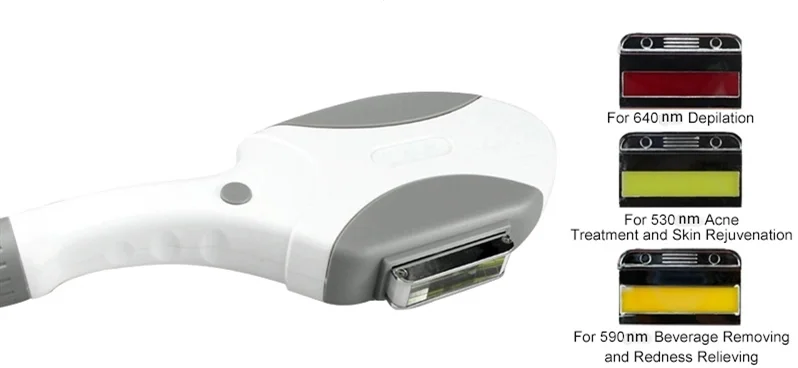

Wavelength 480-950nm or 530-950nm or 640-950nm
Counter Handle Yes
Spot size 15*50mm2
Energy 1-36J/cm2
Pulse repetition rate 1-10 Hz
Continually shooting timer 1-30s
Pulse Single
Pulse on 2-15ms
Water temperature tank 38 degree
Display system 8.4" colorful touch screen
Drive Power 2,000W
Packing List

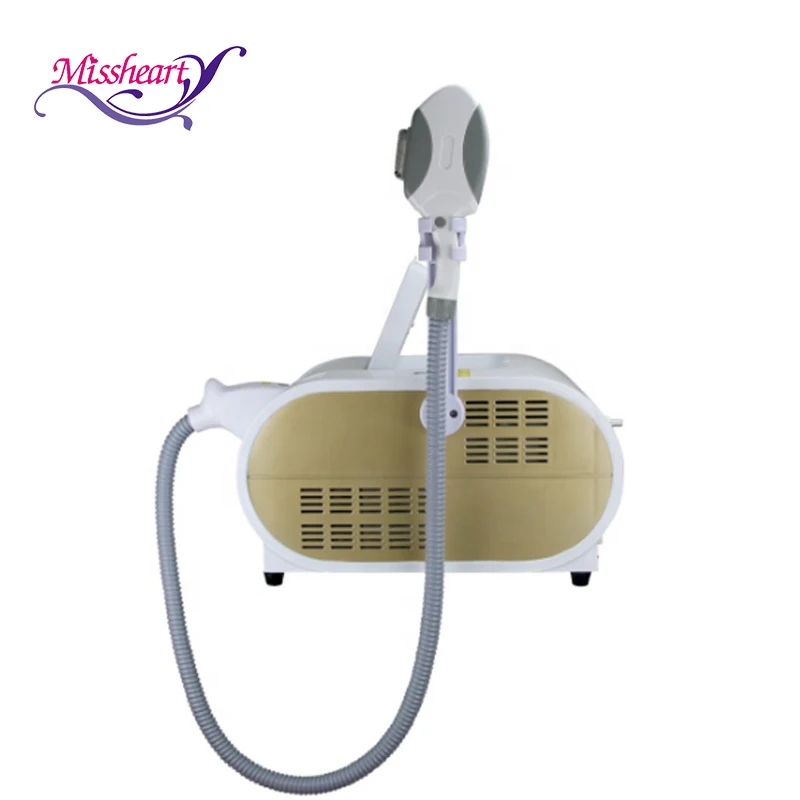

Main device
1pcs

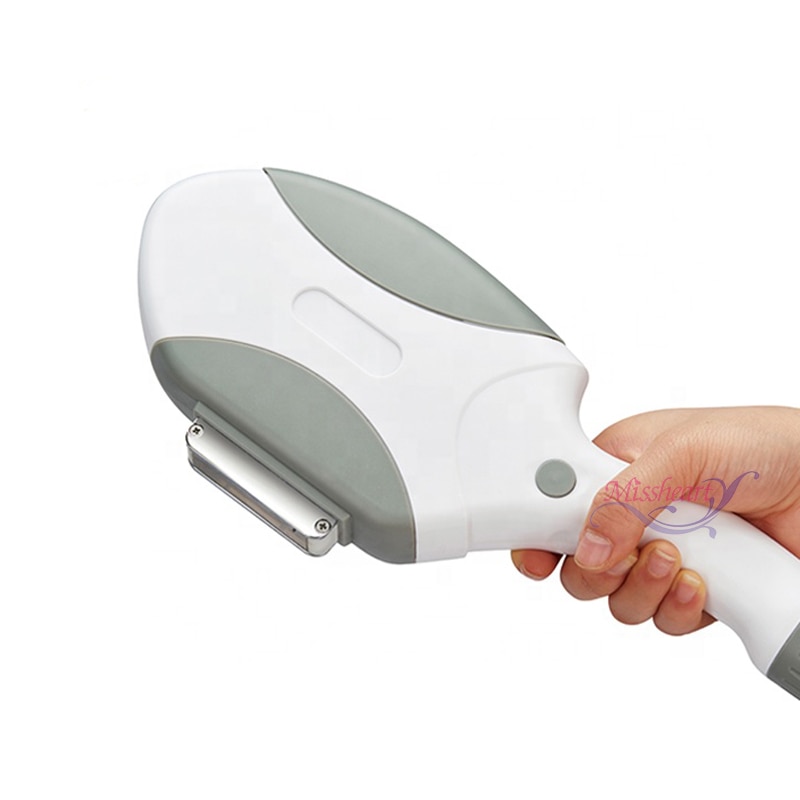

OPT(SHR) Handle 1pcs

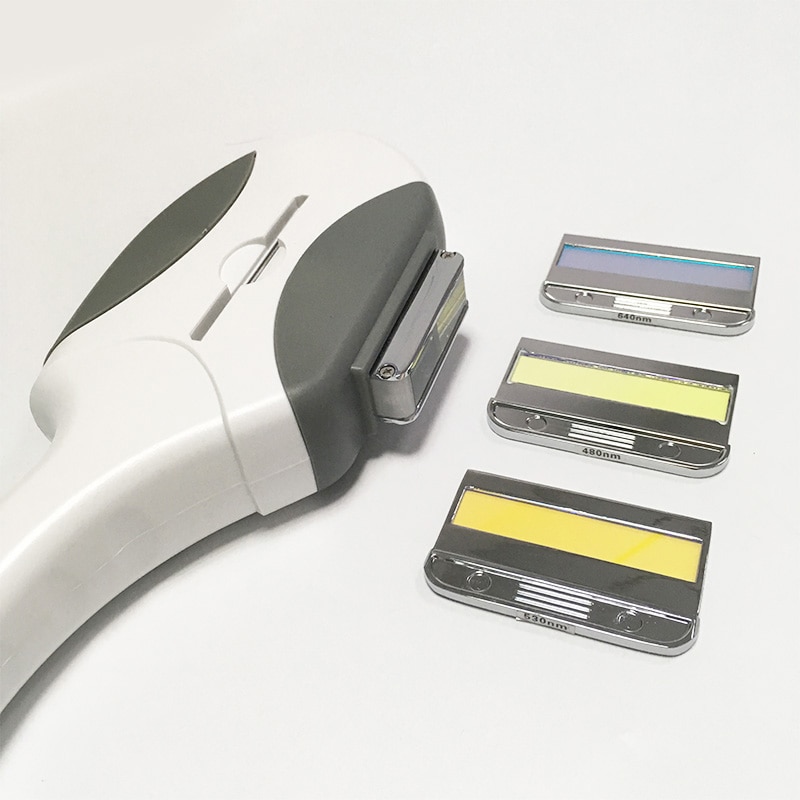

Filters 3pcs
Water Funnel 1pcs
Protective Eyepatch 1pcs
Protective Glasses 1pcs
Holder 1pcs
Fuse 2pcs
Power cord 1pcs
User manual 1book
